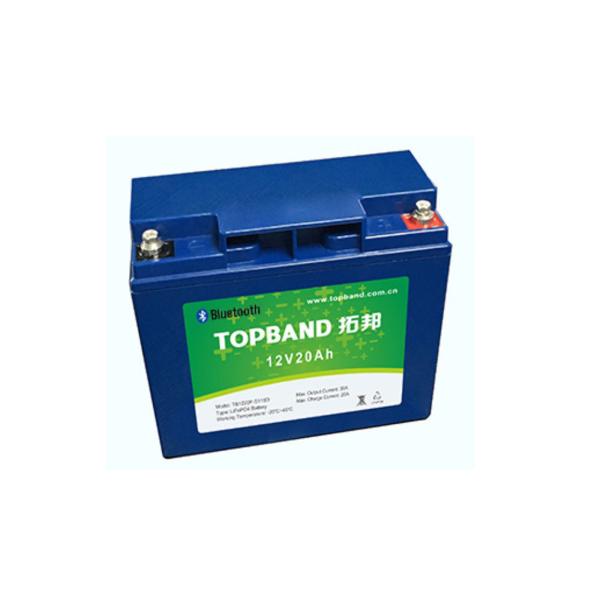

Topband Deep Cycle Lithium Battery 12V 20Ah over 2000cycles @ 100% DOD

Product Categories

Shenzhen Topband Battery Co., Ltd

Contact Now

Name: Topband Deep Cycle Lithium Battery 12V 20Ah over 2000cycles 100 DOD
Brand: Topband
Price: 1 USD

Brand Name : Topband

Model Number : TB1220F-S115A

Certification : ISO9001, ISO14001, UN38.3, MSDS

Place of Origin : China

MOQ : 50pcs

Supply Ability : 450Mwh/year

Delivery Time : 2~4weeks for samples; 4~6weeks for mass production

Packaging Details : standard export carton

Price : Negotiable

Payment Terms : L/C, T/T

Material : Nano LiFePO4

Type : Prismatic

Nominal voltage : 12.8V

Nominal capacity : 20Ah

Cycle life : 2000cycles @100% DOD

Dimension : 180X76X166mm

Weight : 1.6kg

Warranty : 2 years

Contact Now

Topband Deep Cycle Lithium Battery 12V 20Ah over 2000cycles @ 100% DOD

Replace the traditional lead acid batteries

long lifespan & powerful & reliable

lighter & smaller and environment friendly

1. Deep cycle rechargeable lithium battery 12V 20Ah Specification

NO.	Items	Criteria	Remarks
2.1	Rated Capacity	20Ah
2.1	Minimum Capacity	19.6Ah
2.2	Energy	256Wh
2.3	Nominal Voltage	12.8V
2.4	Outgoing Voltage	≥12.8V
2.5	Internal resistance	≤50mΩ
2.6	Series parallel application	Support up to four groups in series and Need to inform battery suppliers
2.7	Limited charge voltage	14.6±0.2V
2.8	Floating charge voltage	13.8±0.2V
2.9	Standard charge current	10A
2.10	Maximum charge current	20A
2.11	Standard discharge current	10A
2.12	Maximum discharge current	20A/ Continue to finished
2.12	Maximum discharge current	30A/ Continue to discharge 30 min
2.13	Pulse discharge current	Withstand the 80A/3s
2.14	Discharge cut-off voltage	8.0V
2.15	Dimension	Length: 180.5±2mm
		Width: 76.0±2mm
		Height: 166.0±2mm
2.16	Weight	Approx: 1.6Kg
2.17	Operating Temperature	Charging: 0～45℃
		Discharging: -20～60℃
		Recommended operating temperature: 15℃～35℃
2.18	Self-discharge rate	Residual capacity: ≤3% per month;≤15% per year
2.18	Self-discharge rate	Reversible capacity: ≤1.5% per month;≤8% per year
2.19	Storage Temperature & Humidity Range	Less than 1 month: -20℃～35℃, 45%RH～75％RH
		Less than 3 months: -10℃～35℃, 45%RH～75％RH
		Recommended storage environment: 15℃～35℃, 45%RH～75％RH
Long time storage: If the battery need be stored for a long time, the voltage should be 13.2V(50%SOC), and stored in the condition as storage proposal. It need at least one charge & discharge cycle every six months

2. Deep cycle rechargeable lithium battery 12V 20Ah circuit protection

NO.	Items	Content	Specification
5.1	Over charge	Over-charge protection for each cell	3.80±0.03V
		Over-charge release for each cell	3.60±0.05V
		Over-charge release method	Under the release voltage
5.2	Over discharge	Over-discharge protection for each cell	2.00±0.05V
		Over-discharge release for each cell	2.30±0.05V
		Over-discharge release method	Charging recovery
5.3	Over current	Discharge over current protection	80~110A
		Protection delay time	10~40ms
		Over current release method	Release after cutoff the load.
5.4	Short	Yes.	Remove after the short circuit automatic recovery
5.5	Battery temperature	Charge over temperature	Protection @65±5℃
		Charge over temperature	Release @50±5℃
		Discharge over temperature	Protection @65±5℃
		Discharge over temperature	Release @50±5℃

3. Deep cycle rechargeable lithium battery 12V 20Ah dimension

4. Deep cycle lithium battery advantage

Output with high efficiency: Standard discharge current is 0.3C-1C, pulse discharge current is 3.5C for 3 seconds.
Good performance under wide temperature -20-60℃. The battery structure is safe and good.
Good safety performance: When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
Long cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(100%DOD).
It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
Low self-discharge. Less than 3% per month.
No pollution during manufacture and usage.

4. Excellent service

2 years' warranty on our LiFePO4 Battery
Fast Delivery service.
Quick response to your any inquiry within 12 hours.
Customized design is available, OEM and ODM are welcome.
Shipment by Air Express (door to door service), by Air Flight and by Vessel, all Available.
Offer the highest quality with the best price.
Professional Pre-sales service with Whole-hearted After-sales service.

Your inquiry will be warmly welcomed, looking forward to our long term cooperation.
